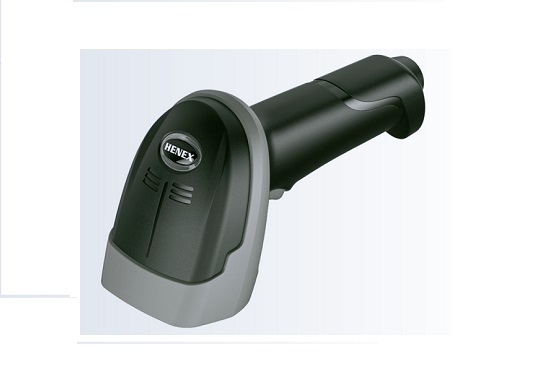

HENEX1200R 1D/2D HIGH SPEED WIRELESS BARCODE & QR SCANNER

SPECIFICATION

• Don’t need any driver, plug and play.
• 2D Anti seismic anti falling Mainly
• Super battery capacity up to 2000mAh.
  Read all 1D and 2D code on screen and paper.
  Communication model: 2.4G, bluetooth and USB-Type-B cable.
  Communication distance (open air): 2.4G: 100m; BT: 40m.
  Charge time is 5 hours and continuous scanning time is 12 hours.
  Support double firmware upgrade online: wireless and decoder.
  The world’s first screw free design, easy to assemble and
  save labour cost.

HENEX H1200R WIRELESS BARCODE SCANNER
H1200R
2.4G:100m; Bluetooth HID/BLE/
SPP: 40m(in open air)
Batte􀇈 Capacity：2000mAh
Charge Mode：Wire charging
Charge time：5h
Working time：12h (continuous scanning)
Work frequency 2.400GHz-2.480GHz ISM
frequency Memo􀇈 Capacity 380000 byte
OS OS Windows / iOS / Android
Image Sensor Image(Pixels)CMOS 640 (H)*480 (v)pixels
Dimension H x W x L Weight
Power parameter Environmental parameters
Green LED light, Buzzer,motor vibration
179*68*94（mm） 176g（With USB Dongle）
Input Voltage：5VDC±5%
Working corrent：400mA
Operating Temperature：-10℃~+ 50℃
Working Humidity：5% to 95% relative humidity, non-condensing
Storage Temperature：-20℃~+60℃
Electrostatic protection：±8 kV（Direct discharge）
Ambient brightness：0~100,000Lux
Drop Resistance ：1.6M IP：IP42
Visual Indicator Field of view32° horizontal, 24° ve
